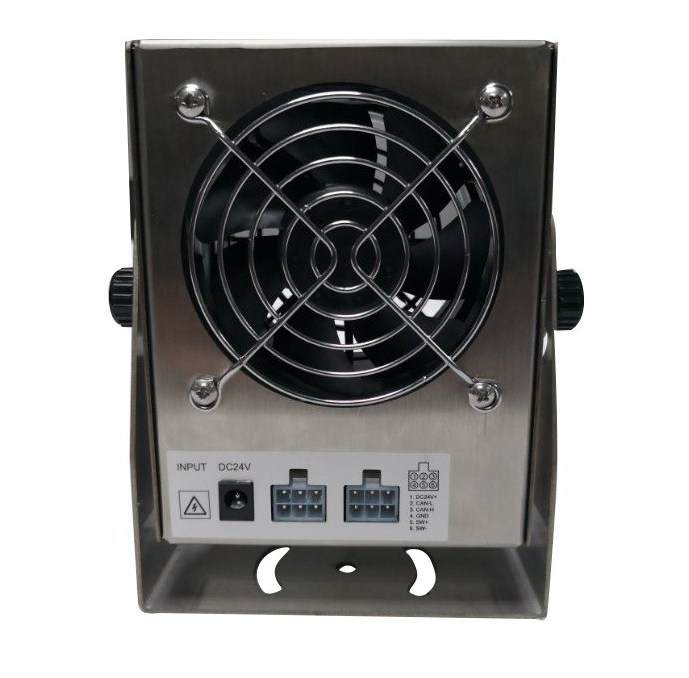

AC Ionizing Blower_Stainless Steel Casing
› Variable fan speed control (3 gears)
› High voltage and fan abnormity alarm
› Discharging emitter cleaning indicator
› Ion Balance is stable, within ±10V.
› The front air window can be dismantled freely, convenient for maintenance.
› The discharging emitter can be dismantled and replaced quickly and easily which is able to prolong the Ionizer's shelf life.
› Alarm signal output
› Power supplied by DC 24V unit, Daisy Chain design
› Stainless steel casing
› Customization is available on casing and function.

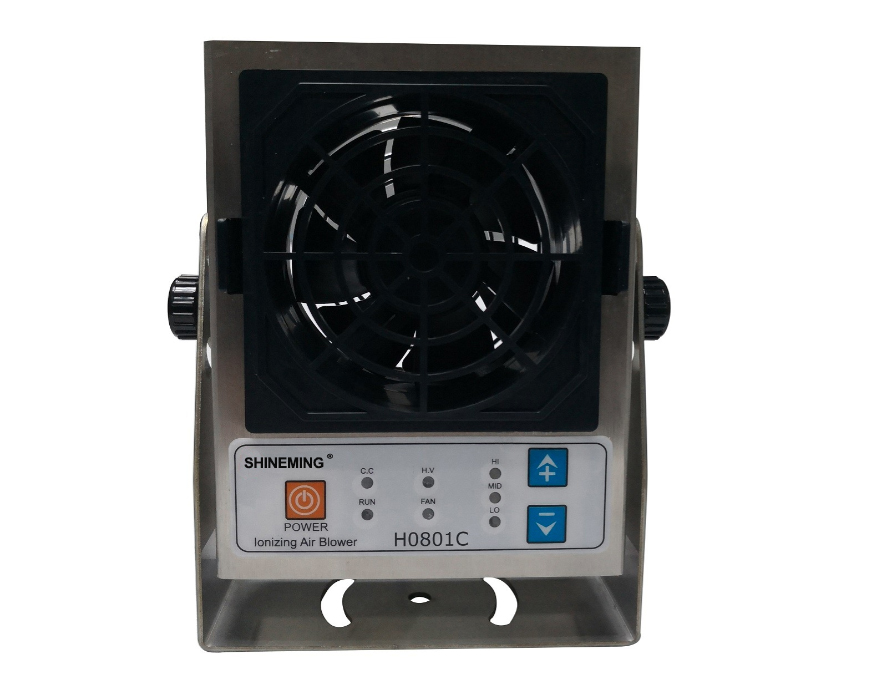

High Frequency AC Ionizing Blower Stainless Steel Casing
Part Number | H0801C |
High Voltage Generator Type | High Frequency AC |
Power Supply | AC 2200V |
Power Input | DC 24V |
Operating Current | 0.25A |
Emitter Material | Special alloy (Tungsten) |
LED Display | Normal Operation |
Abnormal Operation | |
Decay Time | 1.0 sec @12" |
Air volume output | 0.82-1.75㎡/min |
Ozone generation amount (ppm) | Within 0.04ppm |
(measuring distance 150mm) | |
Environment Temperature | 0-40°C |
Environment Humidity | 20%-70%RH (no condensation) |
Dimension | 130x105x55mm |
(The bracket is not included) | |
Weight | 0.65 KGS |
Warranty | 1 Year |
Testing Result and Performance:
Operating Voltage: DC24V
Testing Voltage: ±1000V - ±100V
Temperature: 25℃
| Distance | Ion Type | 300mm | 600mm | 900mm |
| Decay Time | + | 1.2S | 2.8S | 4.8S |
| - | 1.4S | 3S | 5S | |
| Ion Balance | + | ±10V | ||
| - | ||||
Notes:
1. Measurement method: Measured with a 20PF and 150mm Charge Plate Monitor
2. Decay time means the “fall time” from ±1000V - ±100V when the filter screen is not installed and the air volume is maximum.
3. The Charge Plate Monitor is located at the center line of the fan outlet.
